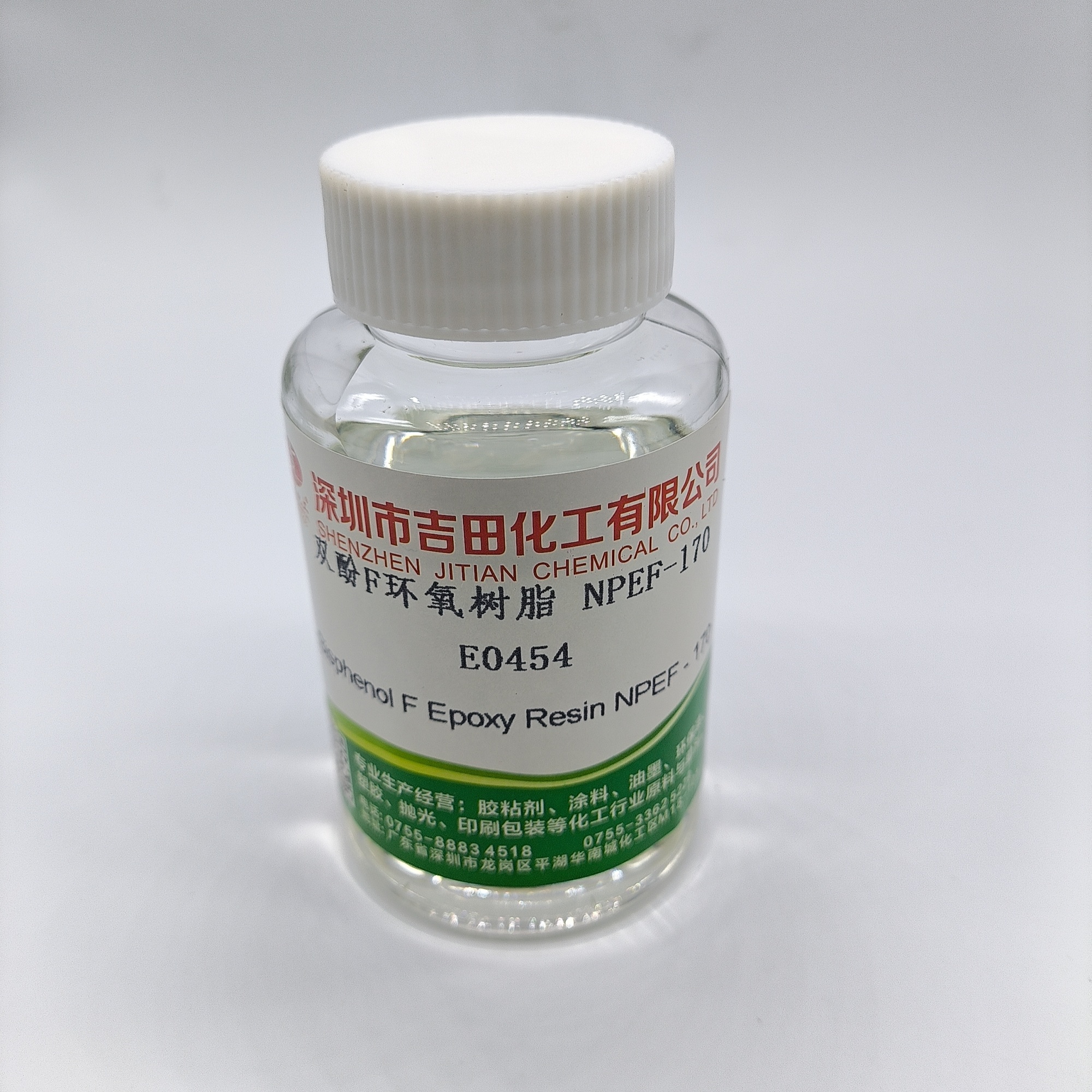

Bisphenol F Epoxy Resin NPEF-170 E0454 Low viscosity Easy to process and mix Suitable for spraying
NPEF-170 is a low-viscosity, high-reactivity bisphenol F epoxy resin featuring outstanding chemical resistance, mechanical strength, and curing performance. Compared to traditional bisphenol A epoxy resins, NPEF-170 exhibits lower viscosity and higher crosslink density, making it suitable for high-performance coatings, composites, adhesives, and electronic encapsulation applications.
Project | Unit | Typical Value | Test Method |
Appearance | - | Colorless to pale yellow transparent liquid | Visual Inspection |
Epoxy Equivalent Weight (EEW) | g/eq | 160-175 | GB/T 4612 |
Viscosity (25°C) | mPa·s | 3,000-5,000 | GB/T 12007.4 |
Density (25°C) | g/cm³ | 1.15-1.18 | GB/T 4472 |
Volatile Content (105°C, 3h) | % | ≤0.5 | GB/T 1725 |
Hydrolyzable Chlorine Content | ppm | ≤200 | GB/T 4618 |
Softening Point | °C | <10(liquid) | GB/T 4507 |
- Parameters
Project | Unit | Typical Value | Test Method |
Appearance | - | Colorless to pale yellow transparent liquid | Visual Inspection |
Epoxy Equivalent Weight (EEW) | g/eq | 160-175 | GB/T 4612 |
Viscosity (25°C) | mPa·s | 3,000-5,000 | GB/T 12007.4 |
Density (25°C) | g/cm³ | 1.15-1.18 | GB/T 4472 |
Volatile Content (105°C, 3h) | % | ≤0.5 | GB/T 1725 |
Hydrolyzable Chlorine Content | ppm | ≤200 | GB/T 4618 |
Softening Point | °C | <10(liquid) | GB/T 4507 |
I. Product Overview:
NPEF-170 is a low-viscosity, high-reactivity bisphenol F epoxy resin featuring outstanding chemical resistance, mechanical strength, and curing performance. Compared to traditional bisphenol A epoxy resins, NPEF-170 exhibits lower viscosity and higher crosslink density, making it suitable for high-performance coatings, composites, adhesives, and electronic encapsulation applications.
Specification
Project | Unit | Typical Value | Test Method |
Appearance | - | Colorless to pale yellow transparent liquid | Visual Inspection |
Epoxy Equivalent Weight (EEW) | g/eq | 160-175 | GB/T 4612 |
Viscosity (25°C) | mPa·s | 3,000-5,000 | GB/T 12007.4 |
Density (25°C) | g/cm³ | 1.15-1.18 | GB/T 4472 |
Volatile Content (105°C, 3h) | % | ≤0.5 | GB/T 1725 |
Hydrolyzable Chlorine Content | ppm | ≤200 | GB/T 4618 |
Softening Point | °C | <10(liquid) | GB/T 4507 |
Product Features:
Low Viscosity: Easy to process and mix, suitable for spraying, dipping, casting, and other techniques.
High Reactivity: Compatible with various curing agents (e.g., amines, acid anhydrides), enabling rapid curing.
Excellent Chemical Resistance: Resists acids, alkalis, solvents, and humid environments.
High Mechanical Strength: Achieves high hardness after curing with superior impact resistance and adhesion.
Low Chlorine Content: Suitable for high-purity applications like electronic encapsulation.
Environmentally Friendly: Complies with RoHS, REACH, and other environmental regulations.
IV. Product Applications:
Coatings: High-performance anti-corrosion coatings, floor coatings, marine coatings, etc.
Adhesives: Structural adhesives, electronic encapsulation compounds, composite bonding, etc.
Composites: Carbon fiber/glass fiber reinforced materials, wind turbine blade resin matrices, etc.
Electronic Packaging: Semiconductor packaging, potting compounds, insulating materials, etc.
Other: 3D printing photopolymer resins, mold manufacturing, etc.
V. Curing Recommendations:
NPEF-170 is compatible with various curing agents. Recommended curing systems:
Amines (e.g., TETA, DETA): Room-temperature or medium-temperature curing, suitable for adhesives and coatings.
Anhydride curing agents (e.g., MHHPA, MeTHPA): High-temperature curing (120-150°C), suitable for electronic packaging and high-performance composites.
Modified amines/polyether amines: Enhance toughness and impact resistance.
Latent curing agents (e.g., dicyandiamide): Suitable for single-component storage systems.
Typical Curing Conditions (using amine curing agents as an example):
Mixing Ratio: Resin : Curing Agent = 100 : 20–30 (by weight; refer to specific curing agent data)
Curing temperature: 25°C (24h) or 80°C (2-4h)
Post-curing (optional): 100-120°C (1-2h) to enhance performance
VI. Product Packaging:
225KG/drum. Store sealed in a cool, dry place away from direct sunlight. Recommended storage temperature: 10-30°C.
REMARK |
The above information is believed to be accurate and presents the best explanation currently available to us. We assume no liability resulting from above content. The technical standards are formulated and revised by customers’ requirement and us, if there are any changes, the latest specification will be executed and confirmed in the contract. |
